Aluminum Profiles

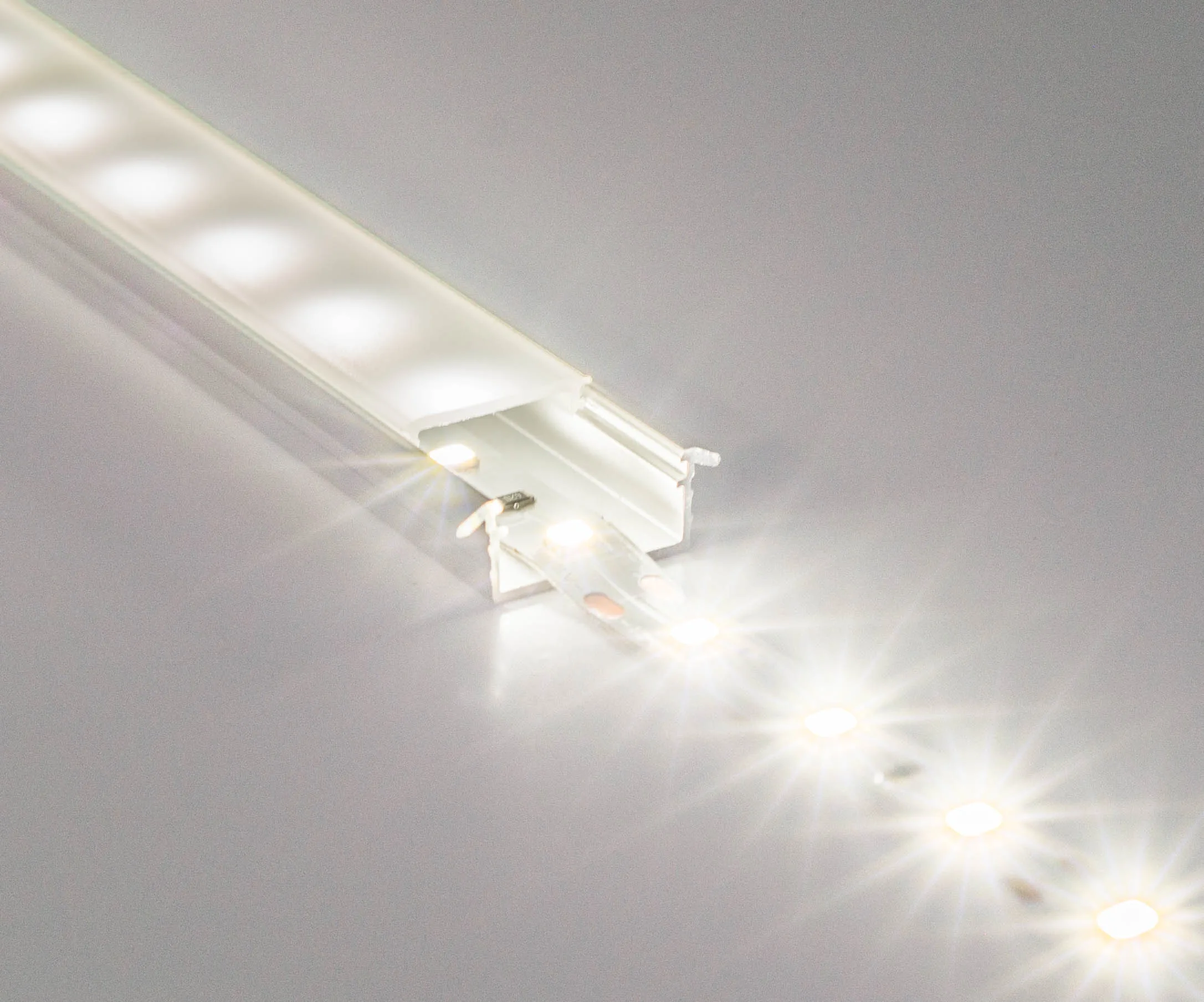

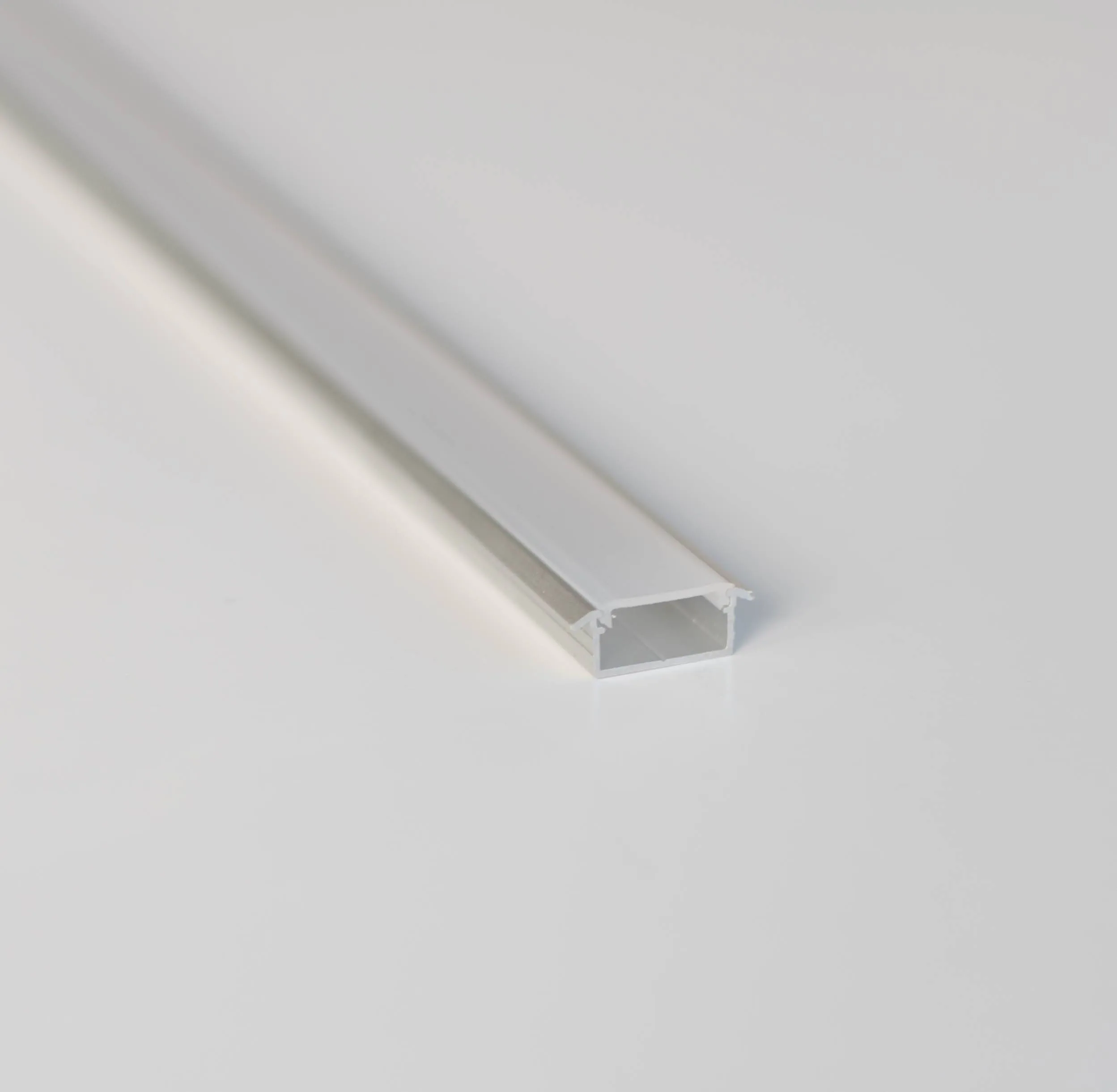

AP-006-U-W23-H9.4-D6.4-L16

Linear Light Aluminum Profile W-23mm H-9.4mm Diffusion Distance-6.4mm StripW-16mm

width-2030height-10lswidth-1020
Aluminum profiles and accessories can be provided separately or as a complete assembly.

Fixed Parameters

Width
Max Width
23
Height
Max Height
9.4
Diffusion Distance
Distance from LED to Cover
6.4
StripWidth
Max Strip Width
16

相关服务

LED Strip
Can be provided fully assembled with LED strips
Cables and Connectors
Can be supplied with any type of cables and connectors
Transformers and Plugs
Available in different power transformers and plugs

Downloads

2D Drawing - DXFDXFDownload3D Drawing - STPSTPDownload
