Aluminum Profiles

AP-010-U-W12.4-H7.8-D4.5-L8.8

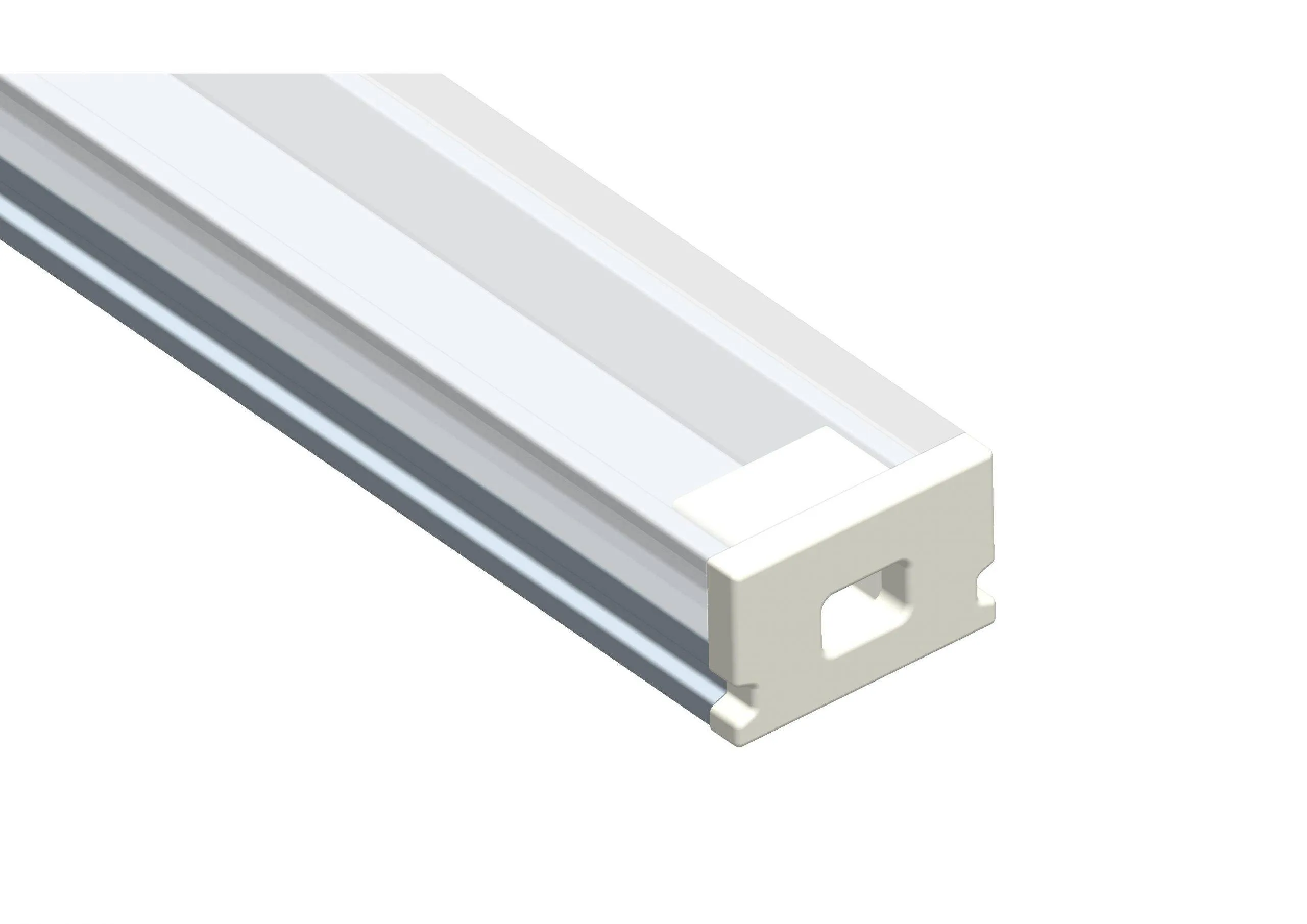

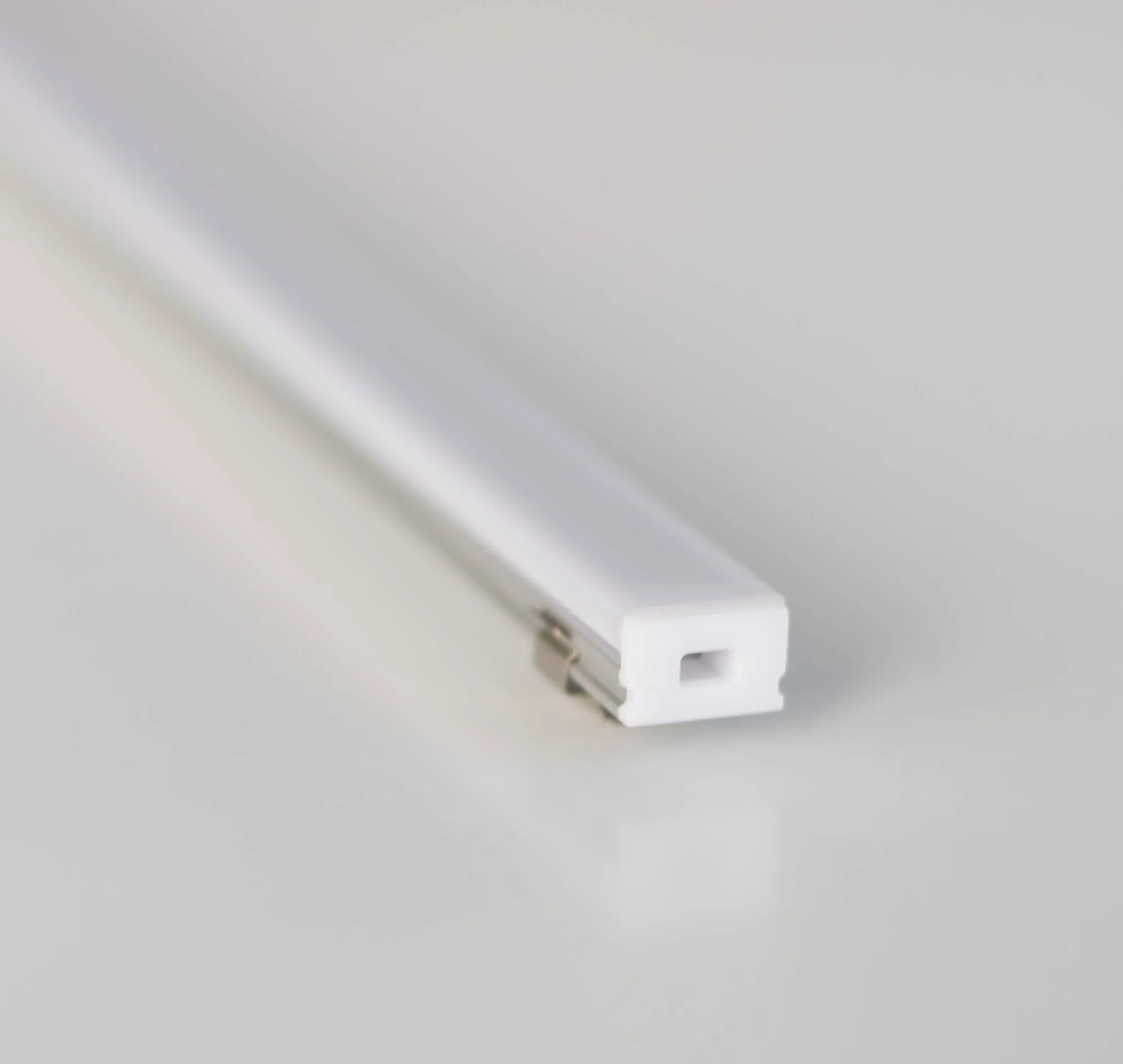

Linear Light Aluminum Profile W-12.4mm H-7.8mm Diffusion Distance-4.5mm StripW-8.8mm

width-1020height-10lswidth-10
Aluminum profiles and accessories can be provided separately or as a complete assembly.

Fixed Parameters

Width
Max Width
12.4
Height
Max Height
7.8
Diffusion Distance
Distance from LED to Cover
4.5
StripWidth
Max Strip Width
8.8

相关服务

LED Strip

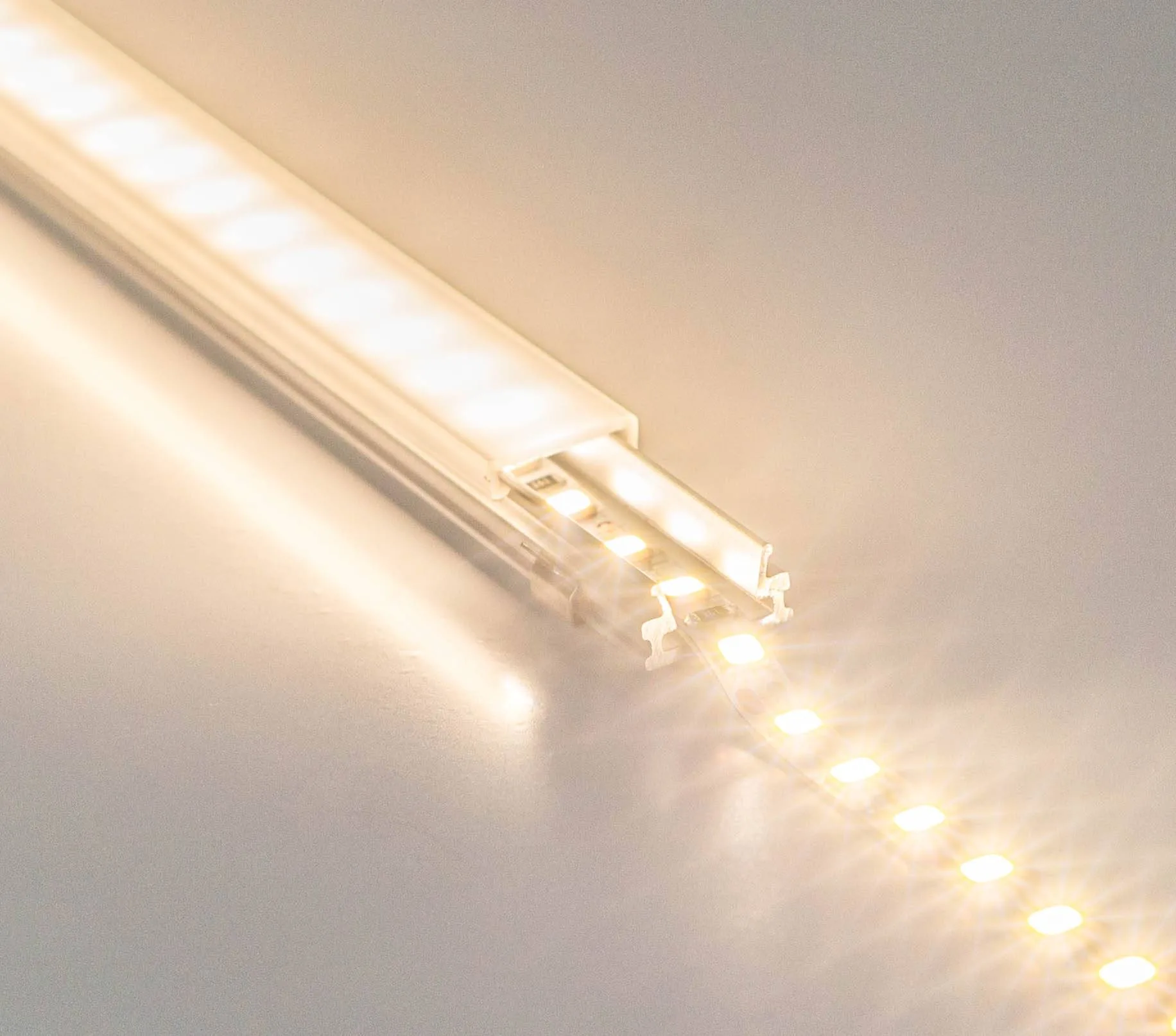

Can be provided fully assembled with LED strips
Cables and Connectors
Can be supplied with any type of cables and connectors
Transformers and Plugs
Available in different power transformers and plugs

Downloads

2D Drawing - DXFDXFDownload3D Drawing - STPSTPDownload
