Aluminum Profiles

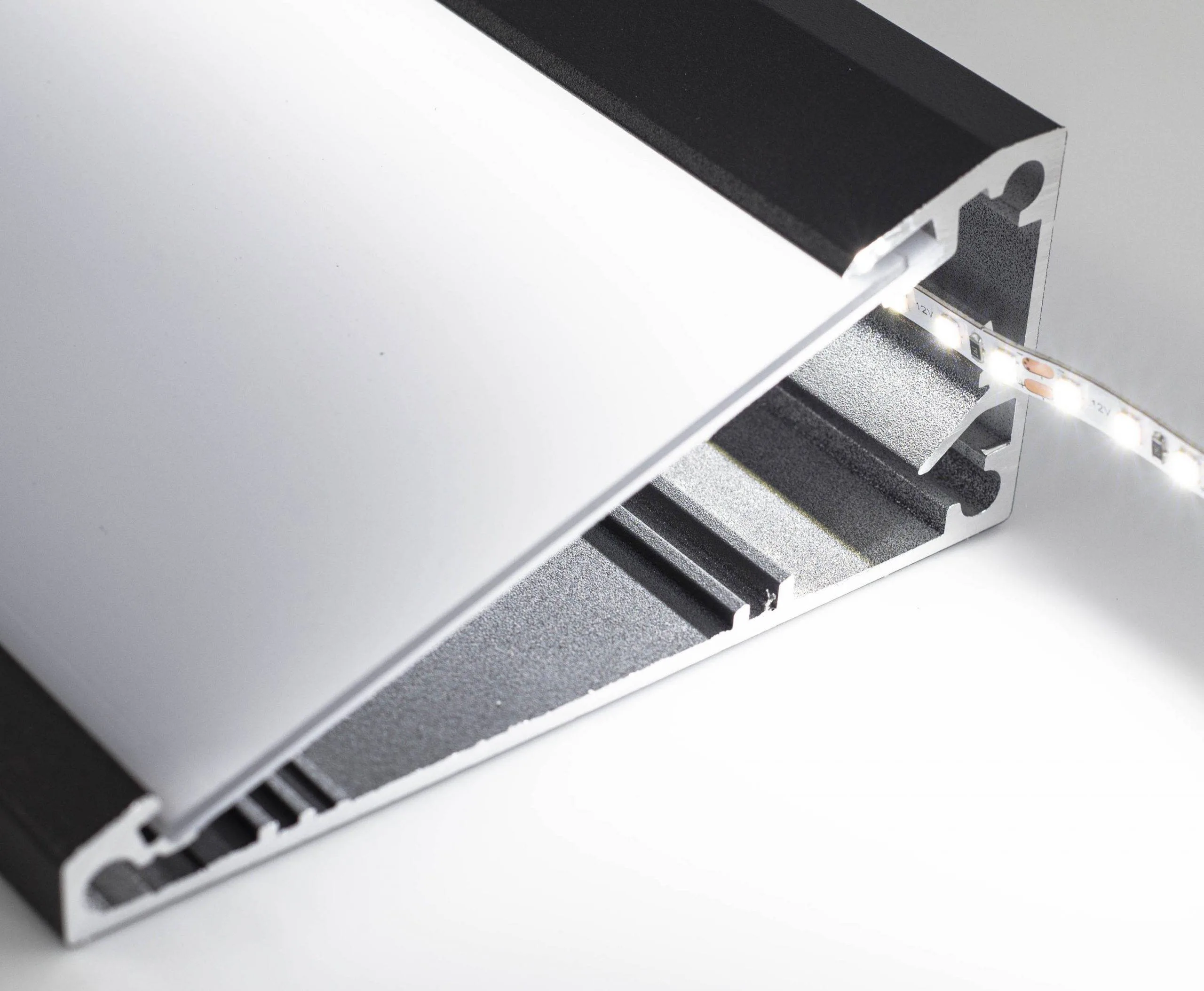

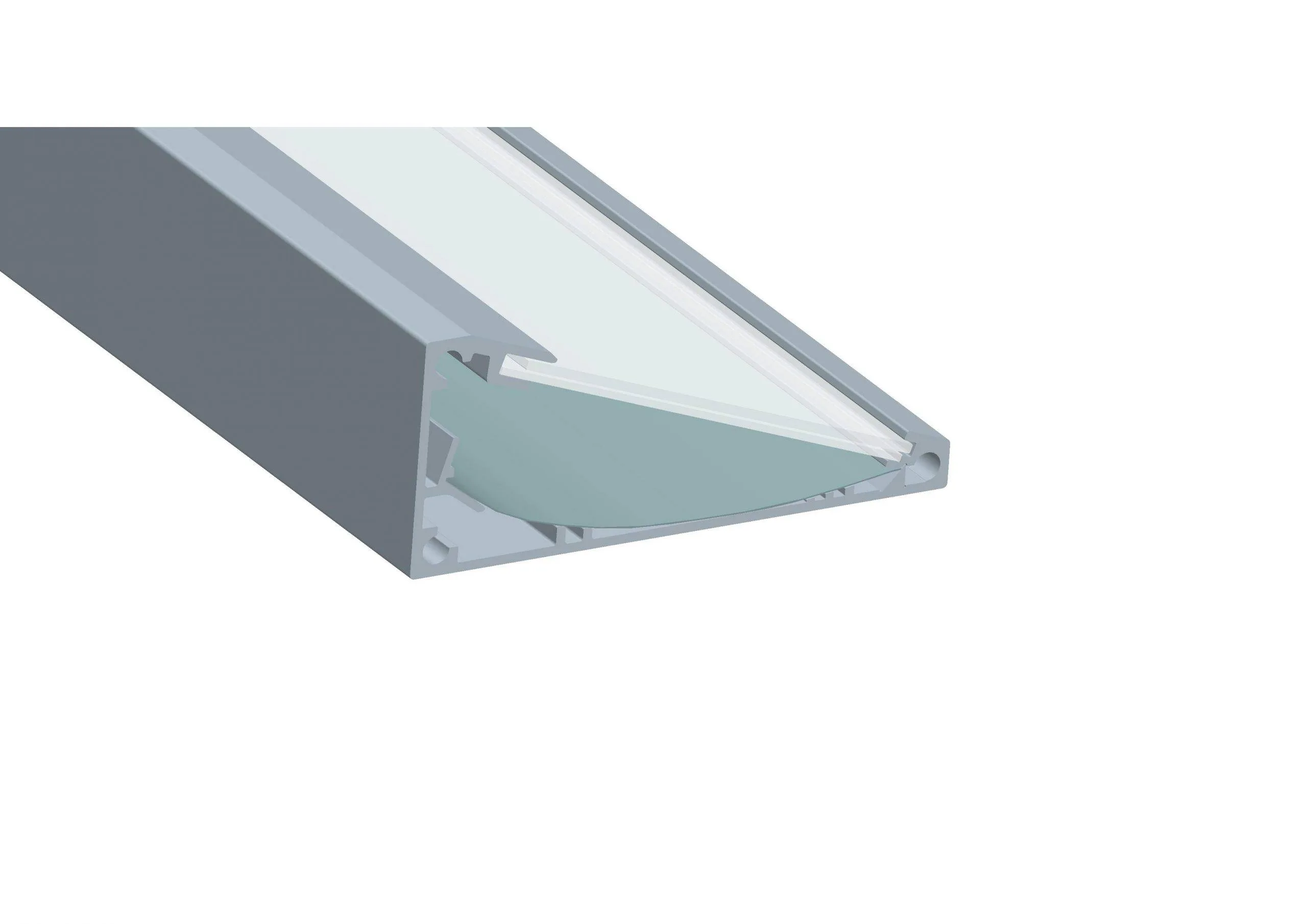

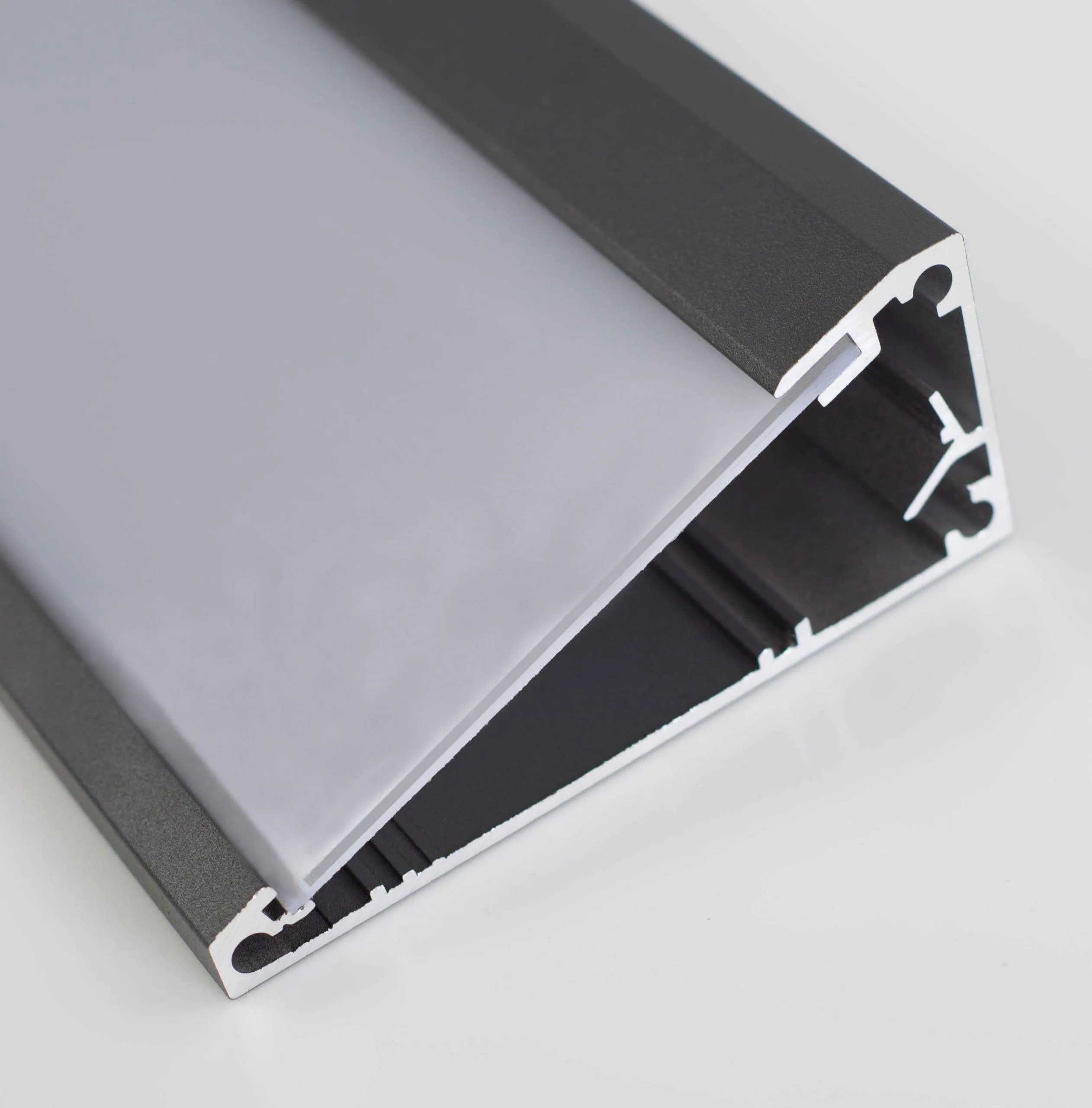

AP-015-L-W120-H50-D50-L5

Shelf Bracket Profile W-120mm H-50mm Diffusion Distance-50mm StripW-5mm

width-30height-30lswidth-10
Aluminum profiles and accessories can be provided separately or as a complete assembly.

Fixed Parameters

Width
Max Width
120
Height
Max Height
50
Diffusion Distance
Distance from LED to Cover
50
StripWidth
Max Strip Width
5

相关服务

LED Strip
Can be provided fully assembled with LED strips
Cables and Connectors
Can be supplied with any type of cables and connectors
Transformers and Plugs
Available in different power transformers and plugs

Downloads

2D Drawing - DXFDXFDownload3D Drawing - STPSTPDownload
